Series 33 absolute parallel encoder
3 3   X X - 2 0 X X - X X X X
Shaft Size |___|

Resolution - bits
12 = 12 mm | 1024 = 10 bit
10 = 10 mm | 4096 = 12 bit
20 = 8 mm

Output Code
06 = 6 mm 20 = binary, 16 pin
  24 = gray, 16 pin
  29 = gray, 6 ft cable
  30 = binary, 6 ft cable


IP54 protection as standard.  IP65 with double lip seal available

upon request.
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Bin / Gray 16 Cable
-   4 ...+ 140 degrees F PS GND 1 Black
Higher Temperature: Please consult PS 12 ... 24 V 2 Red
Power supply: 12 - 24V 2-0 3 White
Current consumption: 100 mA (max.) 2-1 4 Blue
Line driver output max: 50 mA per channel 2-2 5 Yellow
Weight: 1.0 kg Aluminum 2-3 6 Green
Protection: IP 54 or 65 2-4 7 Violet
Housing: Aluminum or SS 2-5 8 Brown
Shaft: Stainless Steel 2-6 9 Pink
Bearings: 2 x 6001 ZZ C2 2-7 10 Turquoise
Torque: 0.4 oz/in (3 N-cm) 2-8 11 Grey
Shaft Seal: Nitrile Double Lip 2-9 12 Orange
Humidity: Up to 98% permissible 2-10 13 Green / Red
Speed: 3000 RPM max. 2-11 14 Red / Blue
Shock: 10g (6msec) 2-12 15 Yellow / Red
Vibration: 5g (500 Hz) cw = N / C to pin 16 Red / Black
Shaft load: Radial max 10 lbs ccw = pin 16 to GND
Output
Count will increment in cw direction
Mounting Instructions
To mount encoder on machine:  Option 1 is to mount with 3 screws or, option 2 is to mount using synchroflange mounting brackets.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

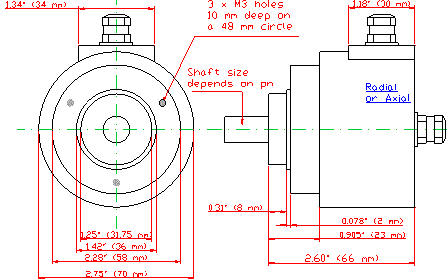

Dimensions
