Series 85 absolute parallel encoder
8   5 X X - 2 0 X X - 0 0 X X


Shaft Size



|___|



Resolution - bits
02 = 3/8" | 10 = 10 bit
03 = 1/2" | 12 = 12 bit

05 = 5/8"-keyway 3/16"

  Output Code
10 = 10 mm 20 = binary, 16 pin
12 = 12 mm -keyway 4x4 24 = gray, 16 pin
15 = 15 mm 29 = gray, 6 ft cable
30 = binary, 6 ft cable
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Bin / Gray 16 / 21 pole Cable
-   4 ...+ 140 degrees F PS GND 1 Black
Higher Temperature: Please consult PS 12 ... 24 V 2 Red
Power supply: 12 - 24V 2-0 3 White
Current consumption: 100 mA (max.) 2-1 4 Blue
Line driver output max: 50 mA per channel 2-2 5 Yellow
Weight: 1.0 Kg 2-3 6 Green
Protection: IP 54 2-4 7 Violet
Housing: Die cast zinc alloy 2-5 8 Brown
Shaft: Aluminum 2-6 9 Pink
Bearings: 2 x 6005 ZZ 2-7 10 Turquoise
Torque: 0.4 oz/in (3 N-cm) 2-8 11 Grey
Humidity: Up to 98% permissible 2-9 12 Orange
Speed: 3000 RPM max. 2-10 13 Green / Red
Shock: 10g (6msec) 2-11 14 Red / Blue
Vibration: 5g (500 Hz) 2-12 15 Yellow / Red
Shaft load: Supports its own weight cw = N / C to pin 16 Red / Black
ccw = pin 16 to GND
Output
Count will increment in cw direction
Mounting Instructions

Mount fixture to the encoder with three self-tapping no. 8 screws and three no. 8 washers.  Slide the encoder onto the shaft.  With the setscrew, tighten the hollow shaft onto the shaft.  Mount the tether on the machine or motor-frame.  The tether can be bent to adapt to any surface.  This assembly allows the encoder to float and increases the lifetime of the bearings.  Connect the encoder as per wiring specifications.  Make sure power supply is within the proper voltage and current rating.  Encoder can be mounted with the setscrew on the machine side or on the opposite side for either CW or CCW.  See datasheet for CW and CCW directions of the outputs.



Technical data for tether:  0.3 mm stainless steel sheet

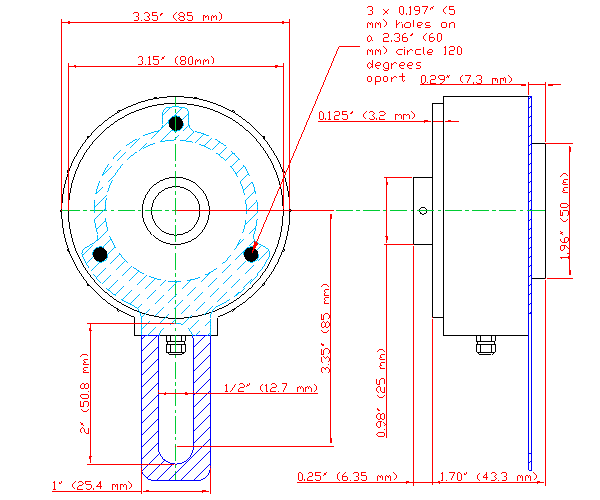

Dimensions
