Series 07 incremental hollow shaft encoder up to 12 mm |
|
|
0 | 7 | X | X | - | 0 | 1 | X | X | - | X | X | X | X | |||||||||
|
Shaft Size |
Connection |
Resolution - ppr |
|||||||||||||||||||||
| 01 = 1/4" | 00 = 9 pole D , output ABO & ABO inv | ||||||||||||||||||||||
| 02 = 3/8" | 01 = 9 pole D , output AB & AB inv | ||||||||||||||||||||||
| 03 = 1/2" | 02 = 9 pole D , output A & A inv | ||||||||||||||||||||||
| 06 = 6 mm | 77 = 1 ft gray cable, output AB | ||||||||||||||||||||||
| 10 = 10 mm | attached to a 9 pin female | ||||||||||||||||||||||
| 12 = 12 mm | connector | ||||||||||||||||||||||
|
56 = 5/16" |
|||||||||||||||||||||||
|
Select your options below and buy online, easily and securely, with PayPal (from $205) |
| Technical Data | Connection Options | |||||
| Operating temp: | - 20 ...+ 60 degrees C | 9 pole | 8 black Cable | 5 gray Cable | ||
| - 4 ...+ 140 degrees F | PS GND | 1 | Black | White | ||
| Higher Temperature: | Please consult | PS 5 ... 24 V | 2 | Blue | Brown | |
| Max frequency: | 40 kHz | Output A | 3 | Brown | Green | |
| Current consumption: | 80 mA (max.) | Output B | 4 | Beige | Yellow | |
| Power supply: | 5 - 24V | Output O | 5 | Pink | Gray | |
| Weight: | 7 oz (0.2 kg) | Output A inv | 6 | Yellow | ||
| Protection: | IP 54, NEMA 3 | Output B inv | 7 | Green | ||
| Housing: | Nylon Plastic | Output O inv | 8 | Violet | ||
| Shaft: | Aluminum | |||||
| Bearings: | 2 x 6803 ZZ C2 | Output | ||||
| Torque: | 0.4 oz/in (3 N-cm) | A is 90 degrees before B in clockwise direction | ||||
| Humidity: | Up to 98% permissible |
|
||||
| Speed: | 3000 RPM max. | |||||
| Shock: | 10g (6msec) | |||||
| Vibration: | 5g (500 Hz) | |||||
| Shaft load: | Supports its own weight | |||||
| Line driver output max: | 50 mA per channel | |||||
| Max. ppr | 1024 | |||||
| Mounting Instructions |
| Mount fixture to the
encoder with three self-tapping No. 8 screws and three No. 8 washers.
Slide the encoder onto the shaft. With two 1/4-20 screws, tighten the
encoder fixture to the motor-frame or machine. Keep clearance between
the encoder and motor or housing by bending the fixture arms as required.
Tighten the setscrew onto the shaft. Connect the encoder as per wiring
specifications. Make sure power supply is within the proper voltage and
current rating. Encoder can be mounted with the setscrew on the
machine side or on the opposite side for either CW or CCW. See
datasheet for CW and CCW directions of the outputs.
Technical data for tether: 0.3 mm
stainless steel sheet |

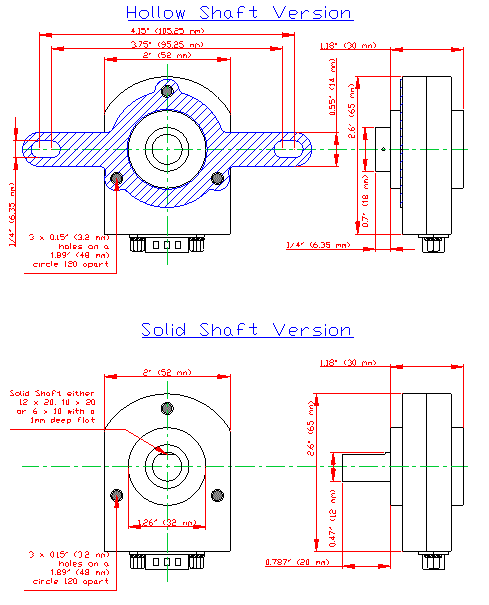

| Dimensions |
|
|
