Series 896 incremental hollow shaft encoder up to 16 mm


I   N   9   6 - X   X   2   S - X   X   A   O - X   X   X   X
  Shaft Size   |   |   Resolution
AB = 3/8"   |   |
AE = 5/8"   |   Output Signal
10 = 10 mm   |   1 = A
12 = 12 mm   |   2 = A and B
    |   3 = A, B and O
Connection   4 = A and A inv
A = 4 pin   5 = A,B and A,B inv
L = 12 pin   6 = A and O
6 =  6 ft cable   7 = A,B,O and A,B,O inv
7 = 12 ft cable

Select your options below and buy online, easily and securely, with PayPal (from $355)

 Shaft Size    Connections     Output                   Resolution




Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C 12 pole Cable 7 pole MS
-   4 ...+ 140 degrees F PS GND 1 Black F
Higher Temperature: Please consult PS 5 ... 24 V 2 Blue D
Max frequency: 40 kHz Output A 3 Brown A
Current consumption: 80 mA (max.) Output B 4 Beige B
Power supply: 5 - 24V Output O 5 Pink C
Weight:    7 oz (0.2 kg) Output A inv 6 Yellow G
Protection: IP 54, NEMA 3 Output B inv 7 Green E
Housing: Nylon Plastic Output O inv 8 Violet
Shaft: Aluminum
Bearings: 2 x 6705 ZZ C2 Output
Torque: 0.4 oz/in (3 N-cm) A is 90 degrees before B in clockwise direction
Humidity: Up to 98% permissible

Speed:  3000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Supports its own weight
Line driver output max: 50 mA per channel
Max. ppr 1024


Mounting Instructions
Clamp encoder to shaft and use torque arm to prevent rotation.  Hook up encoder with the connections as described.  Make sure power supply meets specification.

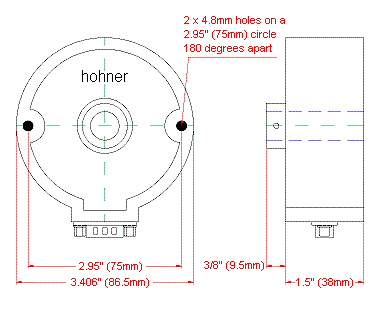

Dimensions
