Series IN20S incremental 2.0" blind hollow shaft encoder


(square flange shown)

I N 2 0 S

X

X

X

L

8

X



X

/

X

X

X

X





|

Shaft Size

|

|

Resolution - ppr



    | 10 = 10mm | |



    | A5 = 1/2"   |

  Exit



    | Connection     R = Radial

Flange Type

6 = MS6

  A = Axial

D = Square 7 = MS7
E = Round 0 = MS10
2 = 2m cable

5...24 Volt Extended Line Driver is standard





Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable 2 meters Connector
-   4 ...+ 140 degrees F PS GND Black 1
Max frequency: 100 kHz PS 5...24V Blue 2
Weight: 53 oz (1.0 kg) Output A Brown 3
Protection: IP 66 Output B Beige 4
Housing: Stainless Steel Output O Pink 5
Shaft: Stainless Steel Output A inv Yellow 6 (not MS6/7)
Bearings: 2 x 6803 Output B inv Green 7 (not MS6/7)
Torque: 0.8 oz/in (6 N-cm) Output O inv Violet 8 (not MS6/7)
Shaft load: 5N (500g)



Humidity: Up to 98% permissible
Speed:  4000 rpm
Max. ppr 1024

Output for Channels



Diagram is shown clockwise


Mounting Instructions
Clamp encoder to shaft and use torque arm to prevent rotation.  Hook up the encoder with the connection as described.  Make sure power supply meets specifications

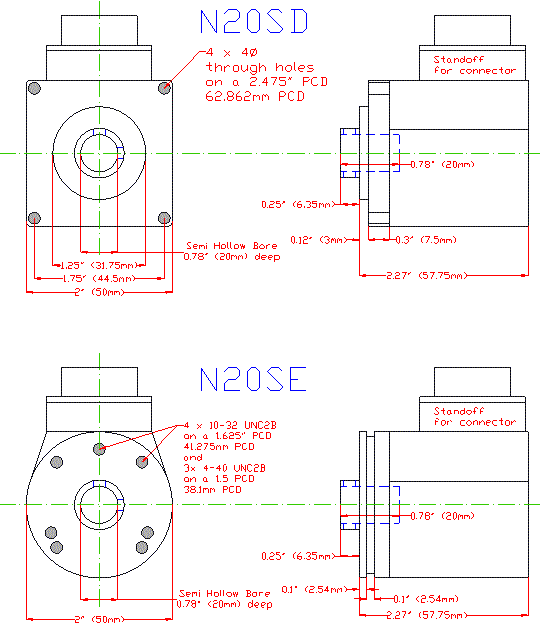

Dimensions
