Series 88 analog encoder with 4 ... 20 mA output


8



8



X



X

-

3   4   X   X - 0   3   6   0


Shaft Size

Connection



Resolution - turns

03 = 1/2"

05 = 6 ft cable   0360 = 360 degrees
05 = 5/8" with 07 = 4 pin plug   0180 = 180 degrees
keyway 3/16"   0090 = 90 degrees
07 = 1" with
keyway 1/4"
16 = 24 mm *4...20mA span based on 250 ohm load
17 = 30 mm
25 = 1 - 1/4"

Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Connector 3 + S Cable
-   4 ...+ 140 degrees F PS GND 1 PS GND Black
On request: -20 ... + 100 degrees C PS + 24 V 2 PS 24 V Red
Power supply: 24V Output 4 ... 20 mA 3 Output White
Current consumption: 80 mA (max.) Shield
Weight:    38.5 oz (1.1 kg) Output
Protection: IP 55 NEMA 3 Count will increment in CW direction.  Precision - 0.5%
Housing: Aluminum
Shaft: Aluminum
Bearings: 2 x 6008 ZZ C2
Torque: 0.4 oz/in (3 N-cm)
Humidity: Up to 98% permissible
Speed:  1000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Supports its own weight

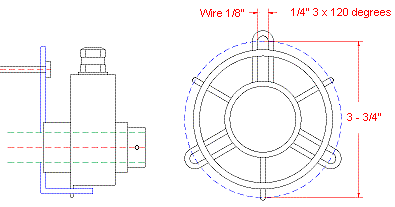

Mounting Instructions
Mount fixture to the machine with three screws and three washers, M6 or 1/4".  Slide the encoder onto the shaft.  With the setscrews, tighten the hollow shaft encoder onto the shaft with a minimum clearance of 1/16" between fixture and encoder.  This assembly allows the shaft to float and increases the lifetime of the bearings.  Connect the encoder as per wiring specifications. Make sure power supply is within the proper voltage and current rating.  Encoder can be mounted with the setscrew on the machine side or on the opposite side for either CW or CCW.  See datasheet for CW and CCW directions of the outputs.

Technical data for mount:  1/8" stainless steel wire

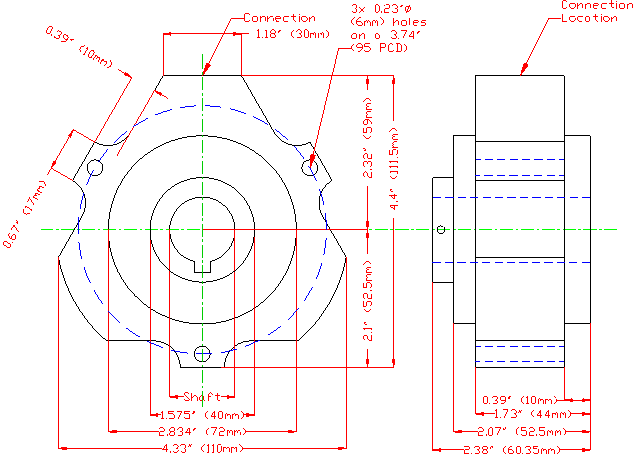

Dimensions
