Series 08 tachometer with 4...20 mA output up to 1/2" shaft |
|
|
0 | 8 | X | X | - | 3 | 1 | X | X | - | X | X | X | X | |||||||||
|
Shaft Size |
Connection-- |
Resolution |
|||||||||||||||||||||
| 02 = 3/8" | 05 = 6 ft cable | 0300 = 300 rpm | |||||||||||||||||||||
| 03 = 1/2" | 1000 = 1000 rpm | ||||||||||||||||||||||
|
12 = 12 mm |
3000 = 3000 rpm | ||||||||||||||||||||||
| *4...20mA span based on 250 ohm load
|
|||||||||||||||||||||||
| Technical Data | Connection Options | |||
| Operating temp: | - 20 ...+ 60 degrees C | Cable | ||
| - 4 ...+ 140 degrees F | PS GND | Black | ||
| Higher Temperature: | Please consult | PS 24 V | Red | |
| Max current cons: | 50 mA | Output | White | |
| Power: | 24 Volts | |||
| Connection: | 6 ft cable | Output | ||
| Weight: | 26 oz (0.75 kg) |  |
||
| Protection: | IP 67M | |||
| Housing: | Stainless Steel | |||
| Shaft: | Stainless Steel | |||
| Bearings: | 3 x 6803 ZZ C2 | |||
| Torque: | 0.4 oz/in (3 N-cm) | |||
| Humidity: | Up to 98% permissible | |||
| Speed: | 3000 RPM max. | |||
| Shock: | 10g (6msec) | |||
| Vibration: | 5g (500 Hz) | |||
| Shaft load: | Supports its own weight | |||
| Mounting Instructions |
| Slide encoder onto shaft. Attach the tether to the encoder as shown below and secure the tether to prevent rotation of the encoder. |

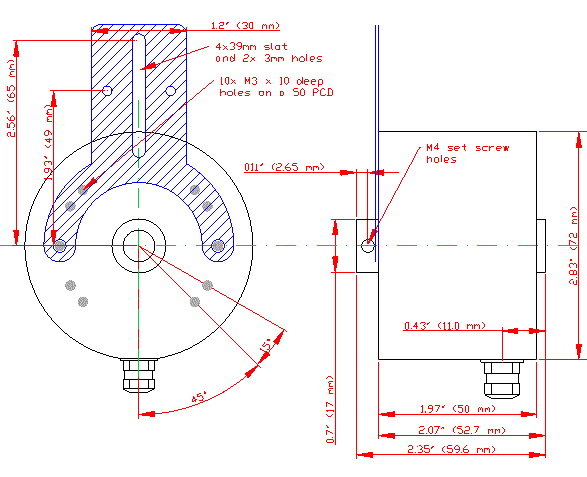

| Dimensions |
|
|
