Series CSMXE SSI absolute stainless steel shaft encoder


M   E X X - 8 X X X - X X X X


|

  |___|

Output

|

|



Resolution

| | 86 = SSi grey | 4096 = 12 bit
| | 87 = SSi binary | more available
| | | Exit
| |

|

A = Axial
| Shaft Size | R = Radial
| K5 = 12 x 20 mm |
| Connection
Protection 3 = 10m cable
E = IP66/67 Stainless Steel 5 = 20m cable

Zone 1, Class 2 Div 1


Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C SSi cable with colours
-   4 ...+ 140 degrees F GND Black
PS 11 ... 24 V Red
Power supply: 11 - 24V Clock + White
Power consumption: 3 Watts Clock - Blue
Signal frequency: 80kHz - 1MHz Data S + Yellow
Weight: 2.5Kg Data S - Green
Data Output: RS422 Diferential Up / Down Violet (leave disconnected for up)
Protection: IP 66 / 67 Up/ Down Voilet (connect to GND for down)
Housing: S. Steel
Shaft: S. Steel
Bearings: 2 x 6001 RSH
Torque: 0.4 oz/in (3 N-cm)
Shaft Seal: Nitrile Double Lip
Humidity: Up to 98% permissible
Speed: 3000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Radial max 10 lbs

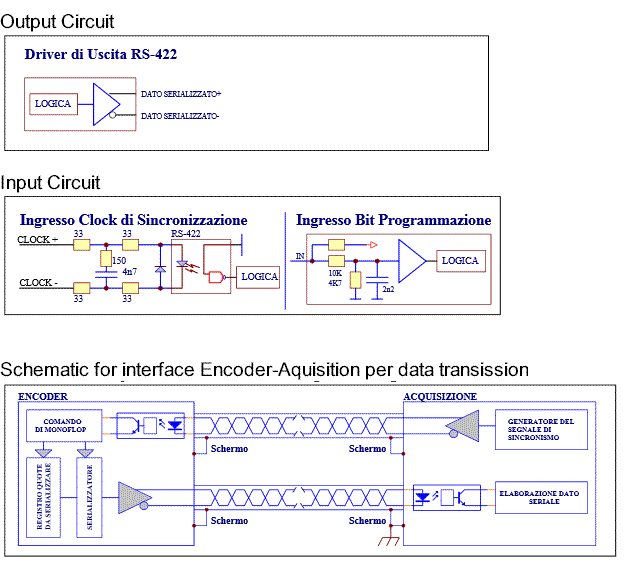

Output for SSi
Certifications
Does not require a barrier for use in hazardous areas, it is Flameproof, making the barrier redundant.
IP 66/X7
Ex d IIC (mining safety markings optional)
ATEX [Certificate]
IECEx [Certificate]
CSA [Certificate]

Mounting Instructions
To mount encoder on machine:  Option 1 is to mount with 3 screws or, option 2 is to mount using synchroflange mounting brackets.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.


Dimensions (extended lid)
