Barrier AD for Current Sink Open Collector Incremental IIB circuit Encoders |
|
|
Part Number: AD-D For Current Sink Open Collector, 5-24V encoders For DIN rail type EN 50 022 (35mm X 7.5mm) OBSOLETE, DATA SHEET FOR REFERENCE ONLY
|
| Technical Data |
| Operating temp: | - 20 ...+ 60 degrees C |
| - 4 ...+ 140 degrees F | |
| System current consumption: | Depends on the encoder or sensor and the max will be 98 mA |
| Load Consumption (power): | Device connected to barrier can have a maximum load of 220 mW |
| Power supply: | 24V |
| Weight: | 7 oz (0.2 kg) |
| Protection: | IP 55. Electronics are potted, the fuse is unpotted for replacing if necessary |
| Housing: | Plastic with Stainless Steel cover |
| Humidity: | Up to 98% permissible |
| Connection Options | |||
| Hazardous Area - Encoder Side | Non-Hazardous Area - System Side | ||
| 9 pole D female | 9 pole D male | ||
| 1 = GND | 1 = NC | ||
| 2 = + 24 Volts | 2 = + 24 Volts | Connect Power Supply Ground | |
| 3 = Output A | 3 = Output A | to the earthing bar on | |
| 4 = Output B | 4 = Output B | the barrier | |
| 5 = Output Ref | 5 = Output Ref | ||
| 6 = Output A inv | 6 = Output A inv | ||
| 7 = Output B inv | 7 = Output B inv | ||
| 8 = Output Ref inv | 8 = Output Ref inv | ||
| 9 = NC | 9 = NC | ||

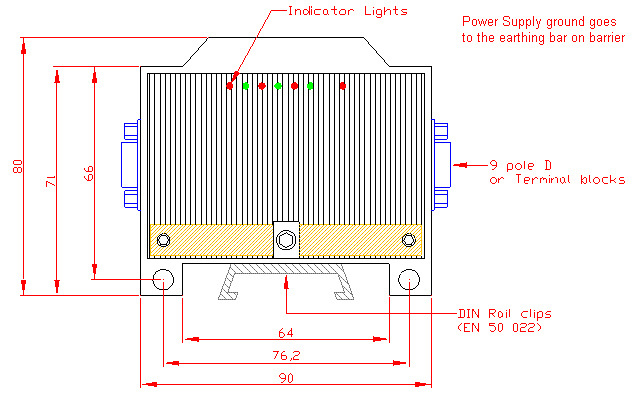

| Dimensions and Mounting Diagram |
|
|
