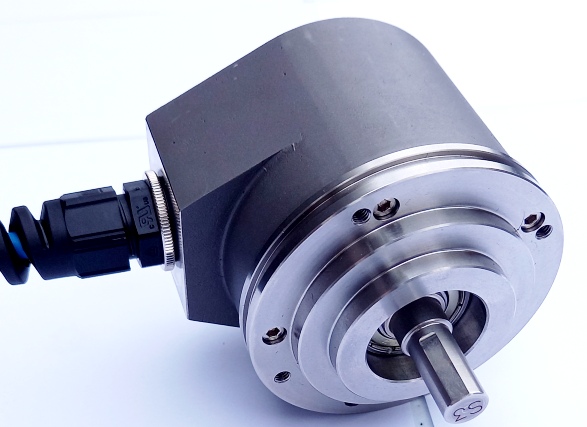

Series AUX incremental stainless steel shaft encoder up to 12mm

(P+F TRD Equivalent)



A



D

   X X - 1

3

 X   X - 0 X X X
  | Shaft



 |   |

Resolution - ppr



 |

K1 = 12 x 25 mm

 |   |
  | K4 = 10 x 20 mm |   Exit


|

   |   A = Axial
Protection |   R = Radial

D = IP66 S. Steel

|





Connections



1 = 2 m cable


2 = 5 m cable


B = MS7 Connector

    IECEx

Zone 0, Class 1 Div 1
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable MS7 Connector
-   4 ...+ 140 degrees F PS GND Red F
Max frequency: 150 kHz PS 5...24 V Black D
Weight: 42 oz (1.2 kg) Output A White A
Protection: IP66/X7 Output B Blue B
Housing: Stainless Steel Output O Yellow n/c
Shaft: Stainless Steel Output A inv Green G
Bearings: Ballraces 2 x 6001 ZZ Output B inv Violet E
Torque: 0.7 oz/in (5 N-cm) Output O inv Brown n/c
Shaft load: Supports its own weight
Humidity: Up to 98% permissible Output
Speed:  3000 rpm Diagram is shown clockwise
Max. ppr 5000





Certifications
To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used.  Our six channel barrier and isolator work with our encoders.  Isolator Data Sheet
IP66M
ATEX  [Certificate]
IECEx  [Certificate]
CSA [Certificate]


Mounting Instructions

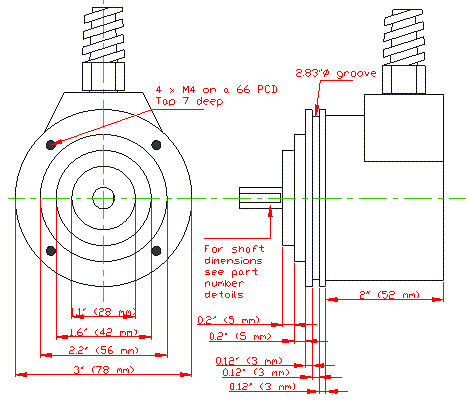

Dimensions
