Series 'DXE' stainless steel shaft encoder up to 12 m



    IECEx

Class I, Zone 1; Zone 21;  Class II, Div 2
R U X X - X X X X - X X X X
|_______| |_______| | | R  E  S  O  L  U  T  I  O  N
Shaft Size | Connection | Up to 5000 ppr max

| |
Output Circuit Connection Exit


XX

Shaft Size

 XX Output Circuit

K1 = 12 x 25 mm

 13 = Extended Line Driver
16 = Current Sink Open Collector
All are 5...24 Volts with all six channels
X Connection X Connection Exit
3 = 10 m cable A = Axial Exit
5 = 20 m cable R = Radial Exit
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable
-   4 ...+ 140 degrees F PS GND Black
On request: -40 ... +  60 degrees C PS 5 ... 24 V Red
Max frequency: 100 kHz Output A White
Current consumption: 90 mA (max.) Output B Blue
Power supply: 5 - 24V Output O Yellow
Weight:    125 oz (3.5 kg) Output A inv Green
Protection: IP 66 / 67 Output B inv Violet
Housing: Stainless Steel Output O inv Brown
Shaft: Stainless Steel
Bearings: 2 x 6001 - (Z) (RS) Output
Torque: 0.8 oz/in (6 N-cm) Diagram is shown with clockwise shaft rotation viewed from
Humidity: Up to 98% permissible

shaft end
Speed:  6000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Radial / Axial 10 N
Line driver output max: 50 mA per channel
Max. ppr: 5000
Inertia: 275 gm-cm2
Certifications
Does not require a barrier for use in hazardous areas, it is Flameproof, making the barrier redundant.
IP 66/X7
ATEX [Certificate]
IECEx [Certificate]
CSA [Certificate]
GOST-CU [Certificate]

Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

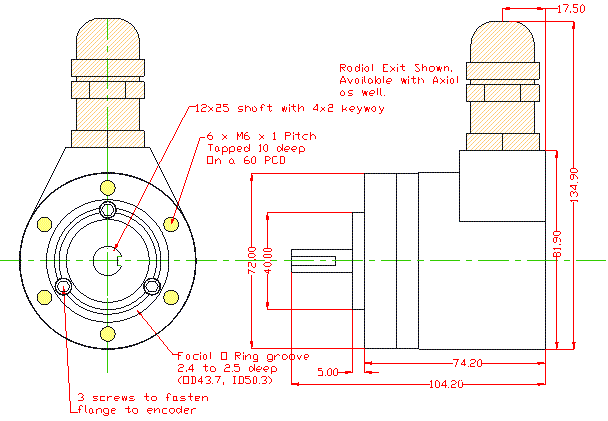

Dimensions
