Series NAMFPX NAMUR (DIN 19234) encoder

with threaded shafts for drawworks


N

A

M

F

P

X

  X X X

X

G   R / 0 X X X

Shaft Size

|



Output

Resolution - ppr

H1 = 1" UNS   |   1 = A
H2 = 3/4" BSP   |   2 = A & B
H3 = 5/8" BSP   |   3 = A & B & Ref
H4 = 1 - 1/4" x 14 tpi   |



4 = 2 x A & B

(16mm bore)   | Other combinations as well
H5 = 5/8" x 18 UNF   Barrier Suitability
H6 = 1 1/4" x 14 tpi     1 = EG8-T-13HF - (P+F)

(25mm bore)



2 = KF2D-SOT2/EX2 (P+F)

H7 = 3/4" UNC



3 = 4013 (MTL)



4 = 9350/20-14-10 (Stahl)

    IECEx

Zone 0, Class 1 Div 1


Technical Data Connection Options
Operating temp: - 20 ...+ 60 degrees C Cable 2 meters Connector
- 4  ...+ 140 degrees F + Loop A # 1 1  or Red (1) Any type of connector with more than 4 pins and an IP rating of 66 can be used, pin allocations will determined by end customer.  More than one connector is possible as well.
Optional - 40 ...+ 100 degrees C  - Loop A # 1 2  or Black (2)
Max frequency: 5 kHz + Loop B # 1 3  or White (3)
Weight: 53 oz (1.5 kg)  - Loop B # 1 4  or Green (4)
Protection: IP 66M, NEMA 4 + Loop O # 1 5 or Yellow (5)
Housing: Aluminum  - Loop O # 1 6 or Blue (6)
Shaft: Stainless Steel
Bearings: 2 x 6807 ZZ
Torque: 0.8 oz/in (6 N-cm)
Shaft load: Supports its own weight
Humidity: Up to 98% permissible
Speed:  Resolution dependant
Max. ppr 512
Shock: 10g (6 msec)
Vibration: 5g (500 Hz)

Output for Channels A&B and O Output for 2 x A&B Channels


Diagram is shown clockwise

Diagram is shown clockwise


Certifications
Best suited to work with the following isolators: P+F KFD2 SOT2 EX2
IP 66M
ATEX [Certificate]
IECEx [Certificate]
CSA [Certificate]
GOST-CU [Certificate]

Mounting Instructions
Thread the encoder shaft onto the matching threaded shaft and tighten both ends.  Add a bit of copper slip for it not to seize up.  To keep encoder from rotating: have a pin to prevent rotation in one of the mounting holes, or a bracket bolted onto the mounting holes, or simply tie wrap the cable.  Whatever is done, ensure there is a bit of play between encoder and mounting arrangement to prevent bearing damage.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.

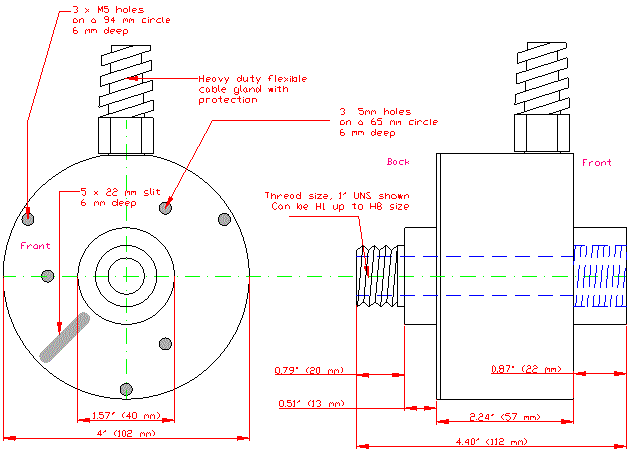

Dimensions
