Series NAMFPX incremental encoder with junction box connection

and threaded and standard shafts for drawworks



N

A

M

F

P

X

   X X X

8

 G   J / X X X X

Shaft Size

 |



 Output

Resolution - ppr
H1 = 1" UNS   |   8 = ABO and Comps.
H2 = 3/4" BSP   |
H3 = 5/8" BSP   |
H4 = 1 - 1/4" x 14 tpi   |
(16mm bore)   |
H5 = 5/8" x 18 UNF   Electronic Output
H6 = 1 1/4" x 14 tpi     L = 5...24V Extended

(25mm bore)



      Line Driver

H7 = 3/4" UNC


25 = 25mmm
30 = 30mm
AA = 1"



    IECEx

Zone 0, Class 1 Div 1
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C T Block Pin
-   4 ...+ 140 degrees F PS GND 1
Max frequency: 150 kHz PS 5...24 V 2
Weight: 53 oz (1.5 kg) Output A 3
Protection: IP 66M, NEMA 4 Output B 4
Housing: Aluminum Output O 5
Shaft: Stainless Steel Output A inv 6
Bearings: 2 x 6807 ZZ Output B inv 7
Torque: 0.8 oz/in (6 N-cm) Output O inv 8
Shaft load: Supports its own weight
Humidity: Up to 98% permissible
Speed:  3000 RPM
Max. ppr 5000
Shock: 10g (6 msec)
Vibration: 5g (500 Hz)

Output for Channels 5...24V



Diagram is shown clockwise


Certifications
To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used.  Our six channel barrier and isolator work with our encoders.  Isolator Data Sheet
IP 66M
ATEX  [Certificate]
IECEx  [Certificate]
CSA [Certificate]
GOST-CU [Certificate]

Mounting Instructions
Thread the encoder shaft onto the matching threaded shaft and tighten both ends.  Add a bit of copper slip for it not to seize up.  To keep encoder from rotating: have a pin to prevent rotation in one of the mounting holes, or a bracket bolted onto the mounting holes, or simply tie wrap the cable.  Whatever is done, ensure there is a bit of play between encoder and mounting arrangement to prevent bearing damage.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.

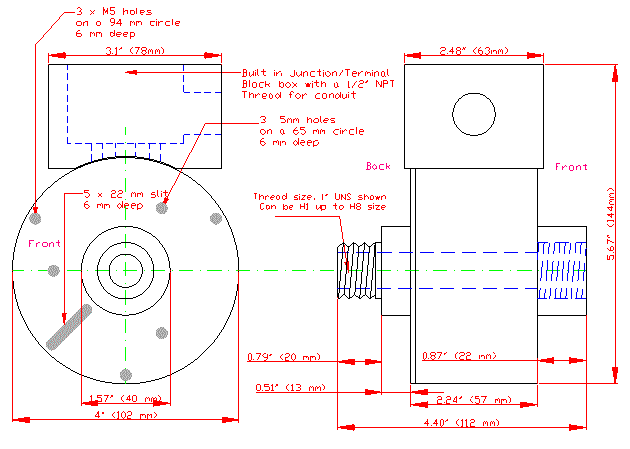

Dimensions
