Series SUBXWD incremental 1000m (1km) submersible solid shaft encoder

Stainless Steel SUBSWD (72mm Ø) shown



IECEx

Zone 0, Class 1 Div 1

S

U

B

X

W

D

 - K1 -

13

 X   X - X X X X



|







 |

|

   Resolution
Encoder Size     |   |
*M = 46mm Ø     |   |
S = 72mm Ø     |   |

L = 90mm Ø

     |   |
Connection  -------------      |
*2 = 5m direct cable       |
*3 = 10m direct cable
*5 = 20m direct cable       |
M = MacArtney 8 pin

Exit
MCBH8MSS Connector    T = Radial Stainless Steel
Connector Data Sheet   C = Axial Stainless Steel
Cable Data Sheet
For cable attached to female mating connector, specify the length of cable to be attached to the mating connector side on a separate line on the PO   *Miniature is NOT
  certified intrinsically safe and
  8...24V and axial only

  *Direct cable is only suitable
  for 25m depth
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C MacArtney 8 pin Direct Cable
-   4 ...+ 140 degrees F PS GND 1 Black
Max frequency: 150 kHz PS 5 ... 24 V 2 Red
Weight: 1 Kg to 6Kg Output A 3 White
Protection: IP 68M Output B 4 Blue
Housing: St. Steel Output O 5 Green
Shaft: Stainless Steel Output A inv 6 Brown
Bearings: 2 x 6807 ZZ Output B inv 7 Orange
Torque: 0.8 oz/in (6 N-cm) Output O inv 8 Yellow
Shaft load: Supports its own weight
Humidity: Underwater
Speed:  600 RPM
Max. ppr 5000





Output (large and small)

Output (mini)

Diagram is shown with clockwise shaft rotation viewed from shaft end.



Diagram is shown with clockwise shaft rotation viewed from back end (opposite of large and small)
Certifications
To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used.  Our six channel barrier and isolator work with our encoders.  Isolator Data Sheet
IP68M 1000m [Certificate]
ATEX  [Certificate]
IECEx  [Certificate]
CSA [Certificate]
GOST-CU [Certificate]

Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.
Dimensions of the 90 mm diameter version (Large)

Dimensions of the 72 mm diameter version (Small)

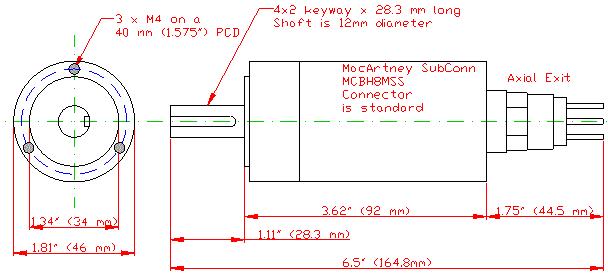

Dimensions of the 46 mm diameter version (Miniature)
