Series TXL stainless steel 'terminal block' encoder (Ex de)

for cold temperatures down to -40C

T X L   4   3   X   9 / X   R   X   X / X   X   X   X
  Extra Cable |   |   |   Resolution - ppr
  *0 = 0 m cable* |   |   |
  A = 10 m cable |   |   Front Flange
  B = 20 m cable |   |   C = No Flange
*No cable is standard* |   |   T = 'REO' Flange

Shaft Size

   |

O = 12x25mm

   Protection

T = 11x33mm



 X = IP 66/67


5 - 24 Volt Extended Line Driver is Standard PS

ABO and ABO inv is Standard Output

Zone 1
Technical Data Connection Options
Operating temp: - 40 ...+   60 degrees C Terminal Block
- 40 ...+ 140 degrees F PS GND 1
Max frequency: 100 kHz PS 5 ... 24 V 2
Current consumption: 40 mA (max.) Output A 3
Power supply: 5 - 24V Output A inv 4
Weight:    7 Kg Output B 5
Protection: IP 66 / 67 Output B inv 6
Housing: Stainless Steel Output O 7
Shaft: Stainless Steel Output O inv 8
Bearings: 2 x 6001 - (Z) (RS)
Torque: 0.8 oz/in (6 N-cm) Output
Humidity: Up to 98% permissible Diagram is shown with clockwise shaft rotation viewed from
Speed:  6000 RPM max.

shaft end
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Radial / Axial 10 N
Line driver output max: 50 mA per channel
Max. ppr: 5000
Inertia: 275 gm-cm2

Certifications

Does not require a barrier for use in hazardous areas, it is Flameproof, making the barrier redundant.



The encoder has a built in Exe Terminal Block in the back.  This is accessible through the back lid which is secured with 4x M4 screws.  User has to comply with all hazardous area procedures in order to open and close the back lid during installation.
IP 66/X7
Ex de IIC
ATEX [Certificate]
IECEx [Certificate]

Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

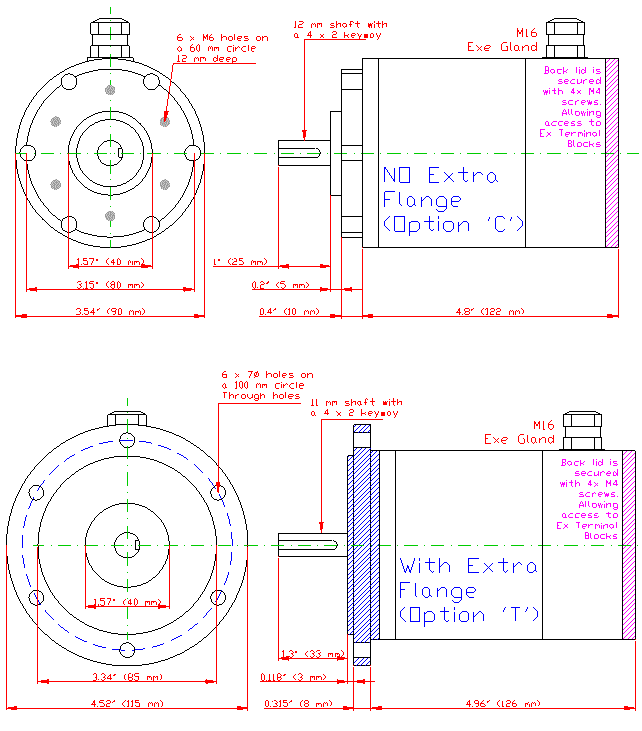

Dimensions (with and without front REO flange)
