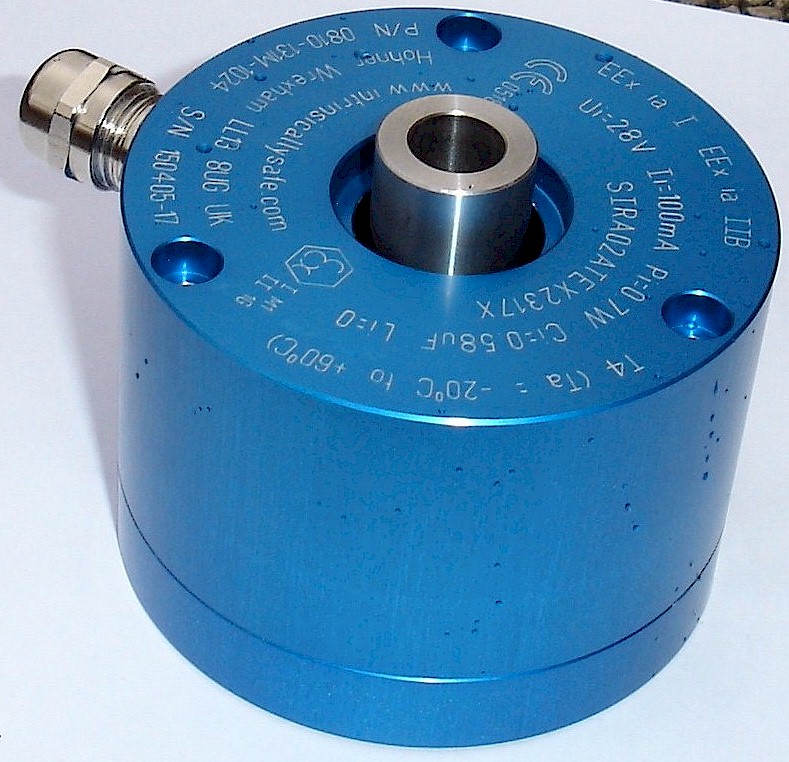

Series 08 stainless steel absolute 4...20mA encoder up to 1/2"

0   8 X X - 0 6 X X - 0 X X X
  Shaft Size

|

   |



Resolution

10 = 10 mm

 | | 360 = 1 ramp per turn
12 = 12 mm | | 180 = 2 ramps per turn
| | 090 = 4 ramps per turn

Connection

 Housing Material
1 = 2 m (6 ft) cable

S = Stainless Steel
2 = 5 m (16 ft) cable
4 = 15 m (50 ft) cable


Precision:  10 bits in 360 degrees, 2.84 increments / degree

Zone 0, Class 1 Div 1
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable 2 meters
-   4 ...+ 140 degrees F + Loop Red
Max frequency: 5 kHz  - Loop Black
Supply Voltage: 24V (current loop)
Weight: 26 oz (0.75 kg) Output
Protection: IP 66 / X7 M Diagram is shown clockwise

Housing and Shaft:

Stainless Steel

*4...20mA span based on 250 ohm load

Bearings:

3 x 6803 ZZ C2

Torque:

0.8 oz/in (6 N-cm)

Shaft load:

Supports its own weight

Humidity:

Up to 100% permissible

Speed:

2000 RPM max.

Max. bits:

10 bit











Certifications
Best suited to work with the following isolators: MTL5541
IP67M
ATEX  [Certificate]
IECEx  [Certificate]
CSA  [Certificate]
GOST (CU) [Certificate]

Mounting Instructions

Mount the tether on the machine or motor-frame.  The tether can be bent to adapt to any surface.  This assembly allows the encoder to float and increases the lifetime of the bearings.  Connect the encoder as per wiring specifications.  Make sure power supply is within the proper voltage and current rating.  Encoder can be mounted with the setscrew on the machine side or on the opposite side for either CW or CCW.  See datasheet for CW and CCW directions of the outputs.



Technical data for tether:  0.3 mm stainless steel sheet
Dimensions
