Series SUBXWD absolute 4...20mA 1000m submersible solid shaft encoder



Stainless Steel SUBSWD (72mm Ø) shown



S

U

B

X

W

D

 - K1 - XX X   X - X X X X


|







|

 |   |   Resolution
Encoder Size Output |   | 1 ramp per:
S = 72mm Ø 06 = 2 wire Ex ia IIC |   | 0090 = 90°
L = 90mm Ø 34 = 3 wire |   | 0180 = 180°

(2 wire not on small version)

 |   | 0360 = 360°
Connection  -------------      |
*2 = 5m direct cable       |
*3 = 10m direct cable
*5 = 20m direct cable       |
M = MacArtney 8 pin

Exit
MCBH8MSS Connector    T = Radial Stainless Steel
Connector Data Sheet   C = Axial Stainless Steel
Cable Data Sheet
For cable attached to female mating connector, specify the length of cable to be attached to the mating connector side on a separate line on the PO



  *Direct cable is only suitable
  for 25m depth
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C
-   4 ...+ 140 degrees F 3 wire version MacArtney 8 pin Direct Cable
Input Voltage: 24 V PS GND 1 Black
Weight: 1 Kg to 6Kg PS 24 V 2 Red
Protection: IP 68M Output 4...20 mA 3 White
Housing: St. Steel
Shaft: Stainless Steel 2 wire version MacArtney 8 pin Direct Cable
Bearings: 2 x 6807 ZZ +Current Loop 1 Red
Torque: 0.8 oz/in (6 N-cm) -Current Loop 2 Black
Shaft load: Supports its own weight
Humidity: Underwater Output
Speed:  600 RPM Diagram is shown with clockwise shaft rotation viewed from
Output: 4...20mA absolute shaft end





*4...20mA span based on 250 ohm load
Certifications
IP68M 1000m [Certificate]
ATEX  [Certificate]
IECEx  [Certificate]

Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

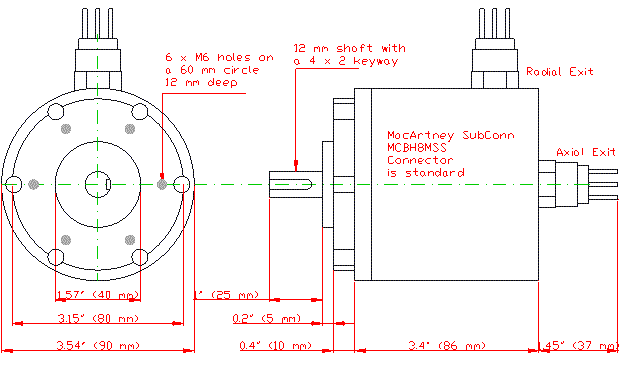

Dimensions of the 90 mm diameter version (Large)

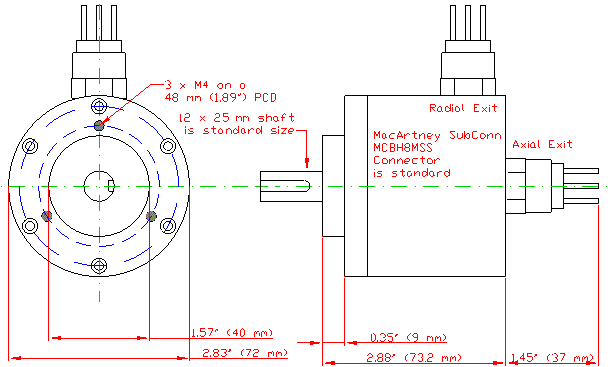

Dimensions of the 72 mm diameter version (Small)
