Series IN20 incremental 2.0" encoder

(square flange shown)

 I N 2 0

X



X

X

L

8

X



X

/

X

X

X

X




 |

Shaft Size

 |

|

 Resolution - ppr



     | K4 = 10 x 20 mm | |



     | K7 = 3/8" x 20 mm |

  Exit



     | Connection     R = Radial

Flange Type

 6 = MS6

  A = Axial
D = Square 7 = MS7
E = Round 0 = MS10
2 = 2m cable

5...24 Volt Extended Line Driver is standard

Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable 2 meters Connector
-   4 ...+ 140 degrees F PS GND Black F
Max frequency: 100 kHz PS 5...24V Blue D
Weight: 53 oz (1.0 kg) Output A Brown A
Protection: IP 66 Output B Beige B
Housing: Aluminum Output O Pink C
Shaft: Stainless Steel Output A inv Yellow
Bearings: 2 x 6001 Output B inv Green
Torque: 0.8 oz/in (6 N-cm) Output O inv Violet
Shaft load: 5N (500g)


Humidity: Up to 98% permissible
Speed:  4000 rpm
Max. ppr 1024

Output for Channels



Diagram is shown clockwise
Mounting Instructions
Clamp encoder to shaft and use torque arm to prevent rotation.  Hook up the encoder with the connection as described.  Make sure power supply meets specifications

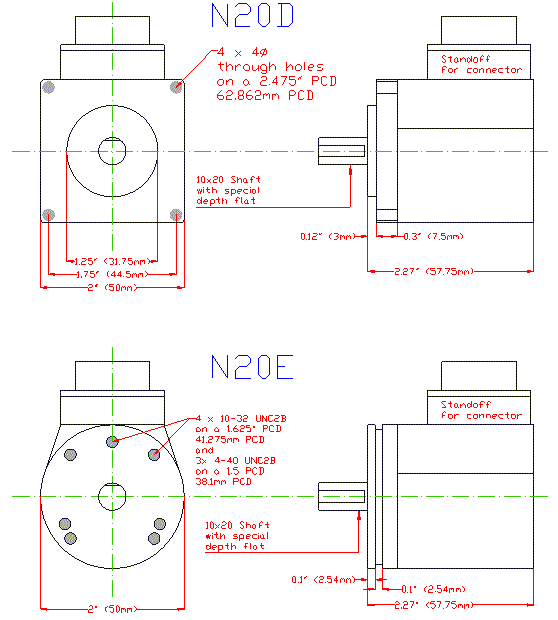

Dimensions
