Series CM24 multiturn shaft encoder with 4...20mA output

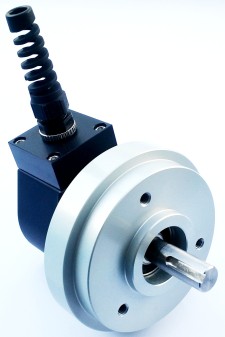

IP 65 version shown

 2   4 K 1 - 4 0 X X - X X X X
  Shaft Size   |   |



Resolution

K1 = 12 X 25 mm

 | | 0309 = 8 turns

| | 0408 = 16 turns
Connection | 0507 = 32 turns
1 = 2 m cable | 0606 = 64 turns
2 = 5 m cable

Exit
F = 4 pin plug (not possible A = Axial IP65

as IP66)

 R = Radial IP65
  M = Aluminum IP66 (Axial)
  S = St. Steel IP66 (Axial)
Axial exit only for IP66


Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C 4 pin plug Cable
-   4 ...+ 140 degrees F PS GND 1 Black
On request: -20 ... + 100 degrees C PS 24V 2 Red
Current consumption: 80 mA (max.) Output 4...20 mA 3 White
Power supply: 24V
Weight:    42 oz (1.2 kg), to 4kg
Housing: Aluminum or SS
Shaft: Stainless Steel
Bearings: 2 x 6001 ZZ Output
Torque: 0.4 oz/in (3 N-cm) Count will increment in CW direction.
Humidity:

Up to 98% permissible

*4...20mA span based on 250 ohm load
Speed:

300 RPM max.
Shaft load:

Radial / Axial 10 N

Certifications
IP 54 / 65 / 66

Mounting Instructions
To mount encoder on machine:  Option 1 is to mount with three screws, option 2 is to use synchroflange mounting brackets.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.
Dimensions
